Depassivation & Load Test Box with WATSON™

Part Number:
12-111

Client Comment
"Practical and easy to use "
Features
related PRODUCTS

CONTACT US

GENERAL SPECIFICATIONS.

Part Number: 12-111
Description: :

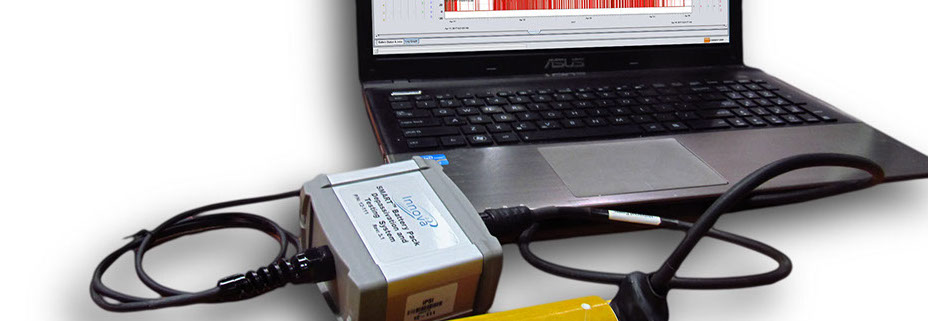

SMART Depassivator and Load Tester Interface Box
Connector: PC USB connection
Weight: 200g
Maximum Voltage: 60V
Maximum Current:
500mA (fused)
Operating Temperature: -40ºC to +50ºC
The WATSON™ software runs on Microsoft Windows (XP, VIsta, 7, 10) allowing the user to
nterface to the battery packs to view the data recorded by the logger. This data can be
downloaded to a file, printed and exported for easy sharing among customers and team members.
Additionally, WATSON™ can configure a battery pack for specific operation under unique conditions.
 This software is required to view all the data available from the loggers. The battery pack interfaces to the PC via the depassivation box.
 When using WATSON™, users can run an automated test sequence on the battery pack that checks the open circuit voltage, depassivates and load tests the pack.
